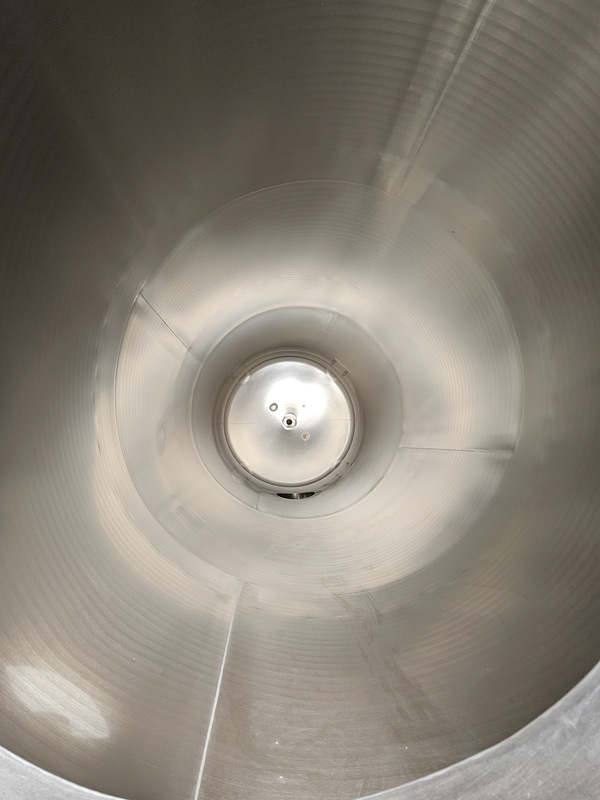

Chemical vessels

Custom made storing and process vessels with different volumes, if needed (in case of bigger volumes) with site erecting and assembly.

MAIN CHARACTERISTICS OF THE VESSELS DEPENDING ON THE SPECIFIC NEEDS OF THE CUSTOMER:

  • Material: 1.4301, 1.4571, 1.4404
  • Volume: 1-5000 m3
  • Medium: other
  • Strength calculation and manufacture acc. to AD2000 Merkblatt or EN 14015
  • Accessories: by demand

Soxlet Extractor

Equipment used in petroleum industry to solute and extract oil from minerals.

MAIN CHARACTERISTICS OF THE VESSELS DEPENDING ON THE SPECIFIC NEEDS OF THE CUSTOMER:

  • Material: 1.4404
  • Volume: 400 liter
  • Medium: minerals
  • Surface: inner Ra 0,6 µm, outer Ra 0,8 µm
  • Operating pressure: -1/+3 bar,
  • Strength calculation and manufacture acc. to AD2000 Merkblatt
  • Notified body: TÜV Rheinland
  • Accessories: pressure- and temperature transmitter, frequency converter, engine, agitator, luminiare, sight glass, washing head, heavy- and light current box, 2,5 m2 heat exchanger

Chemical column

40 meter long process column with trays assembled.

MAIN CHARACTERISTICS OF THE COLUMN BY THE SPECIFIC REQUIREMENTS OF THE CUSTOMER:

  • Material: stainless steel or carbon steel
  • Number of trays: 65
  • Operating pressure: atm., -1/+3 bar,
  • Strength calculation and manufacture according to AD2000 Merkblatt or EN14015
  • Accessories: by demand

Site erection and assembly of custom made vessels

At site erection the required tank or tanks are assembled at the customer’s site from pre-fabricated structural elements. We offer site erection as an option to our customers by different parameters (volume, transport distance, weight, etc.). Our experience of two decades – we have erected tanks in Austria, Ukraine, Poland, etc. – makes it possible to offer you the perfect quality in a cost efficient way.

The most important aspects of site erection and assembly

  • close contact with the customer.
  • flexible administration, adjustment to the customer’s requirements.
  • adopt technology to the local facilities.
  • to have the shortest possible delivery/completion time.
  • continuous quality control from date of the base material transport till technical acceptance.
  • complete documentation.
1234

Remnant and cleaning water storage tank

  • Material: parts in contact with the medium: 1.4541, parts not in contact with the medium: 1.4301
  • Volume: 50 m3
  • Operational pressure: atm.
  • Type: vertically executed outdoor tank
  • Medium: remnant, cleaning water
  • Surface finish: pickled, passivated

Filter vessel

MAIN CHARACTERISTICS OF THE VESSEL:

  • Material: 304L
  • Volume: 9110 L
  • Surface: pickled and passivated
  • Operating pressure: -1/6 barg
  • Strength calculation and manufacture acc ASME Boiler and Pressure Vessel Code Section VIII. Division 1 but without ASME stamping and NB registration
  • Applicable directives: PED 2014/68/EU – Category IV / Module G
  • Accessories: according to customer request
1234

Plastic granulate tank

MAIN CHARACTERISTICS OF THE VESSELS DEPENDING ON THE SPECIFIC NEEDS OF THE CUSTOMER:

  • Material: 1.4301, parts not in contact with the medium: S235
  • Volume: 100m3
  • Medium: plastic granulate
  • Strenght calculation and manufacture acc. PED 2014/68/EU pressure equipments requirements
  • Accessories: by demand

Dense waste tank

MAIN CHARACTERISTICS OF THE VESSEL DEPENDING ON CUSTOMER’S NEEDS:

  • Material: 1.4404
  • Volume: 250m3
  • Medium: dense waste
  • Surface treatment: Material of the parts in contact with the medium: 1D
  • Outer surface: pickled and passivated
  • Operating pressure: atm + hydro-test
  • Strenght calculation and manufacture: MSZ EN 14015; 2005
  • Notified body: TÜV Rheinland
  • Accessories: agitator, top manhole, side manhole, bottom valve
1234

Process and storage tanks for a chemical manufacturing plant

In 2019-2020, we designed and built storage tanks in the area of a chemical manufacturing plant in Szolnok – in compliance with the Customer’s data providing. We have completed the design, documentation, pre-production, on-site construction and installation work of the tanks, and provided the engineering supervision and the appropriate personnel for the on-site construction and installation.

We transported 16 pieces of 4700mm diameter 250 m3 tanks to the site by oversized road transport and built 2 pieces of 580m3 site erected tanks at the Client’s premises.

Later, two 80m3 hazardous material storage tanks were added to the scope of delivery.

1234567891011

Titanium Gr 2 Vessels

MAIN CHARACTERISTICS OF THE VESSEL:

  • Material: TiGr2 (3.7035)
  • Volume: 200 liter
  • Medium: Chemical industry substances
  • Working pressure: -1/+4 bar
  • Surface treatment: pickled and passivated, polished
  • The tanks are designed and delivered in accordance with: EN 13445-4: 2014 + EN13445-11:2018
  • Accessories: sight glass, sample port, frequency converter, drive gear

In 2020, based on the data provided by the Customer, we designed and constructed a total of 26 tanks in our workshop in the area of a plant producing electrolytes in Tatabánya – required for lithium batteries.

Details of manufactured tanks:

  • Storage tanks (8 pcs. 20 m3),
  • waste water storage tank (1 pc. 20 m3),
  • waste water tank (1 pc. 0.5 m3),
  • air tank (1 pc. 5 m3),
  • city water tank (1 pc. 10 m3),
  • measuring tank (1 pc. 0.2 m3),
  • reactors (1 pc. 1 m3; 2 pcs 10 m3; 2 pcs 20 m3)
  • and columns (8 pcs 0.6 m3) were delivered to our Customer.
1234

In 2020-2021, we designed and manufactured 13 biodiesel tanks within the framework of an on-site tank construction based on the data provided by the Customer within the framework of a biofuel supply plant in Komárom.

From this

  • 6 pcs stainless steel tanks (1 pcs 2000 m3; 2 pcs 500 m3; 2 db 400 m3; 1 pcs 150 m3);
  • 6 pcs carbon steel tanks (4 pcs 200 m3; 1 pcs 500 m3; 1 pcs 1500 m3)
  • 1 pcs 22 m3 polyethylene tank (PAC).
12

In 2020-2021, we designed and fabricated 4 biodiesel tanks within the framework of an on-site tank construction based on the data provided by the Customer within the framework of a biofuel supply plant in Komárom.

Therefrom

  • 3 pcs carbon steel tanks (1 pcs 500 m3; 1 pcs 1000 m3; 1 pc 1500 m3),
  • and 1 pc 100 m3 polyethylene tank (HCI).

Air receiver tanks

MAIN CHARACTERISTICS OF THE VESSEL DEPENDING ON CUSTOMER’S NEEDS:

  • Material: 1.4541
  • Volume: 2 pcs 15m3 (16050 L); 2 pcs 10m3 (9800 L)
  • Medium: Water + air
  • Surface finish: Weld pickling, all surfaces passivated
  • Operating pressure: 3…10 bar
  • Strength calculation and manufacture: EN 13445; PED (2014/68/EU); 44/2016 (XI.28.) NGM; 2/2016 (I.5.) NGM
  • Notified body: TÜV Rheinland
  • Accessories: manhole, pressure gauage, pressure transmitter

Standing cylinder tanks for a lithium batteries manufacturing plant

In 2020-2021, based on the data provided by the Customer, we designed and constructed a total of 17 tanks in our workshop in the area of a plant producing liquid solvents in Újhartyán – required for lithium batteries.

DETAILS OF MANUFACTURED TANKS:

  • MT-1101 NaOH dissolution tank (1 pc 0,25 m3),
  • MT-1102A NBR dissolution tank (1 pc 2,5 m3);
  • PT-1103 & PT-1105 pre-mixing tank (2 pcs 2,5 m3);
  • LT-1104 & LT-1106 let-down tank (2 pcs 2,5 m3);
  • ST-1701 NMP storage tank (1 pc 50 m3);
  • and MT-1102B NRB storage tank (1 pc 2,5 m3) were delivered to our Customer.
1234

4 pcs standing in skirt, cylindrical mobile tanks

MAIN CHARACTERISTICS OF THE VESSEL DEPENDING ON CUSTOMER’S NEEDS:

  • Material: 1.4301
  • Volume: 50L
  • Surface finish: pickled, passivated
  • Operating pressure: max. 12 bar
  • Strength calculation and manufacture: according to PED A2
